DYE 1000L smirnoff vodka alcohol distillery equipment for sale

FOB Reference Price:Get Latest Price
$1,500.00 - $20,000.00 / Units | 1 Unit/Units smirnoff vodka (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Processing:
Fermenting Equipment
Condition:
New
Place of Origin:
Zhejiang, China
Brand Name:
DYE
Model Number:
DYEPT-02
Processing Types:
Alcohol
Voltage:
208/220/240V option
Power(W):
No motor
Dimension(L*W*H):
Capacity Request
Weight:
2000kgs
Certification:
ISO9001 / CE /PED
name:
1000L smirnoff vodka alcohol distillery equpment for sale
Capacity:
1000L
Material:
Stainless Steel 304 and red copper
Control system:
control heating temperature
Heating method:
by 60kw electrical heating element
Keywords:
smirnoff vodka
Function:
produce vodka, whisky rum
Number of trays:
20trays with red copper bubble caps
Material of distillation column:
red copper
Mixer:
1.1kw, 60rpm
After-sales Service Provided:
Engineers available to service machinery overseas
Warranty:
3 Years
Supply Ability
Supply Ability:
30 Unit/Units per Quarter smirnoff vodka
Packaging & Delivery
Packaging Details
By LCL: Standard wooden case which can avoid any clash during the sea or air transportation in case of causing damage to the equipment's surface.
By FCL:The equipment will be bound firmly and won't easily swing to the side, or up, or down.(smirnoff vodka
Port
NINGBO/SHANGHAI/QINGDAO,CHINA
Lead Time :
within 60 days after receive your deposit
Video Description
Product and Details

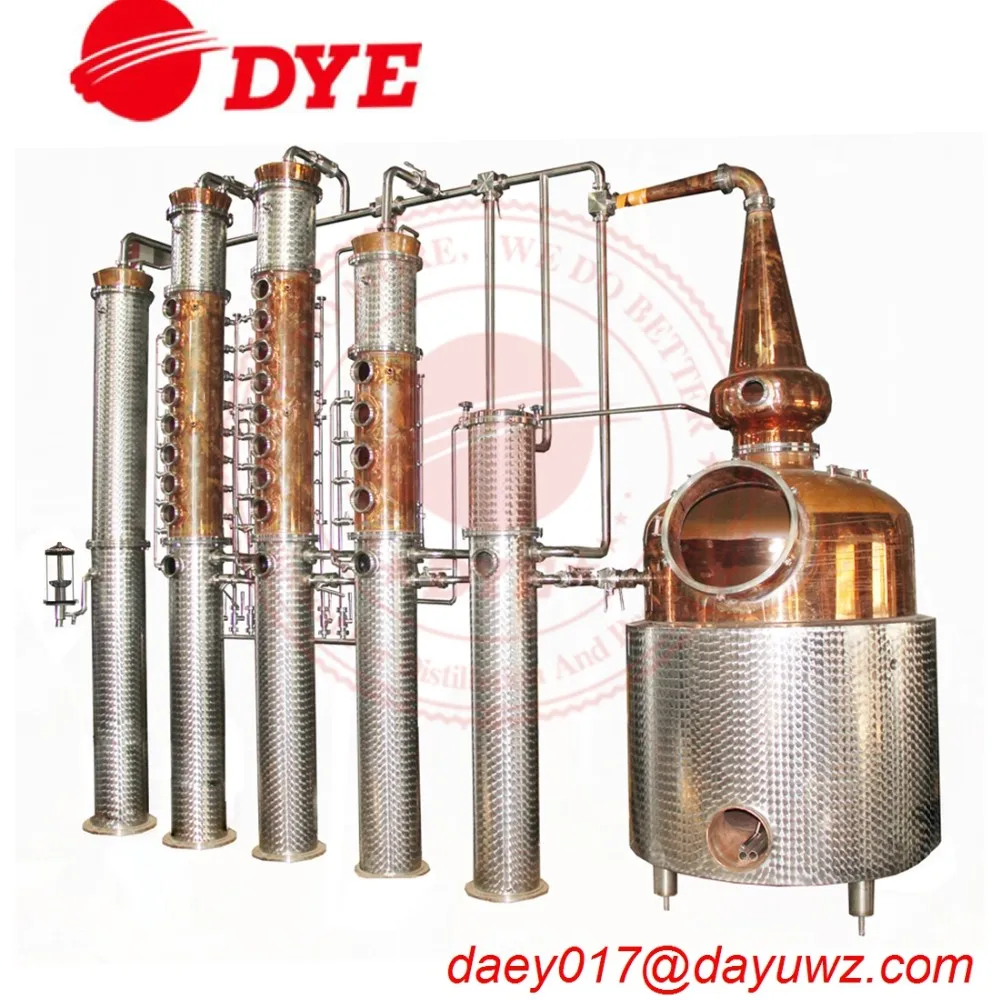

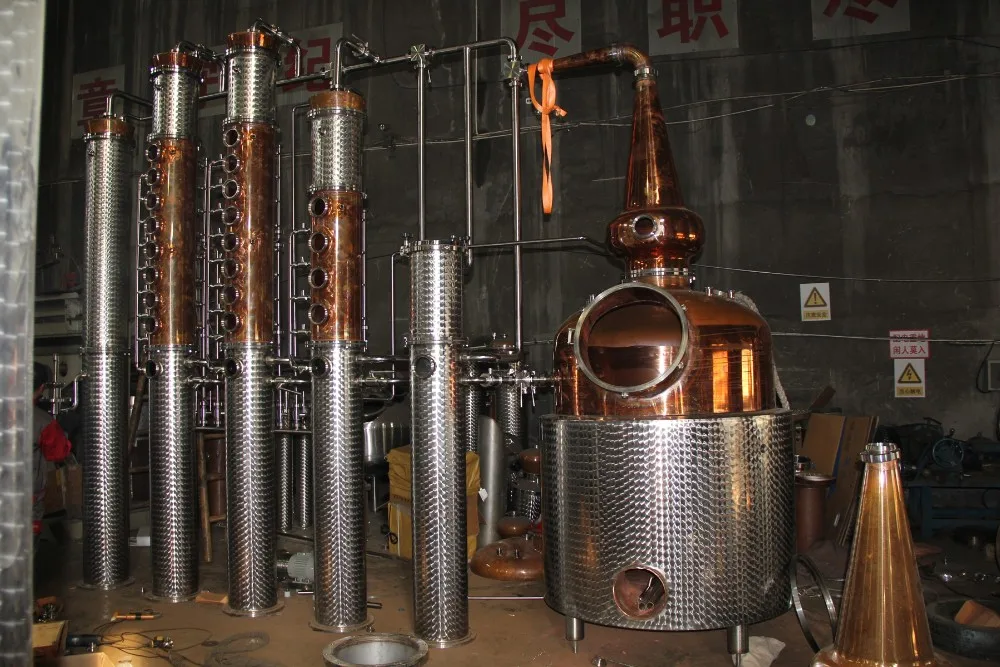

DYE-III-distillation equipment


Working capacity:1000L

Heating by steam

Structure: 1000L still pot+red copper goose neck+red copper gin basket+4plate red copper column+16plate red copper column+2* SS304 dephlegmator+ a SS304 condenser+parrot outlet

Which can produce whisky, brandy, rum, gin,vodka.max.95% alcohol


Details parts

Still pot with agitator

hold wash,
by constantly agitating the wash throughout the distillation run,the distillery can save 20% on the heating required to perform the distillation.
Motor certificate: UL/CSA/CE option

Goose neck(Helmet)

It is technically an expansion chamber,

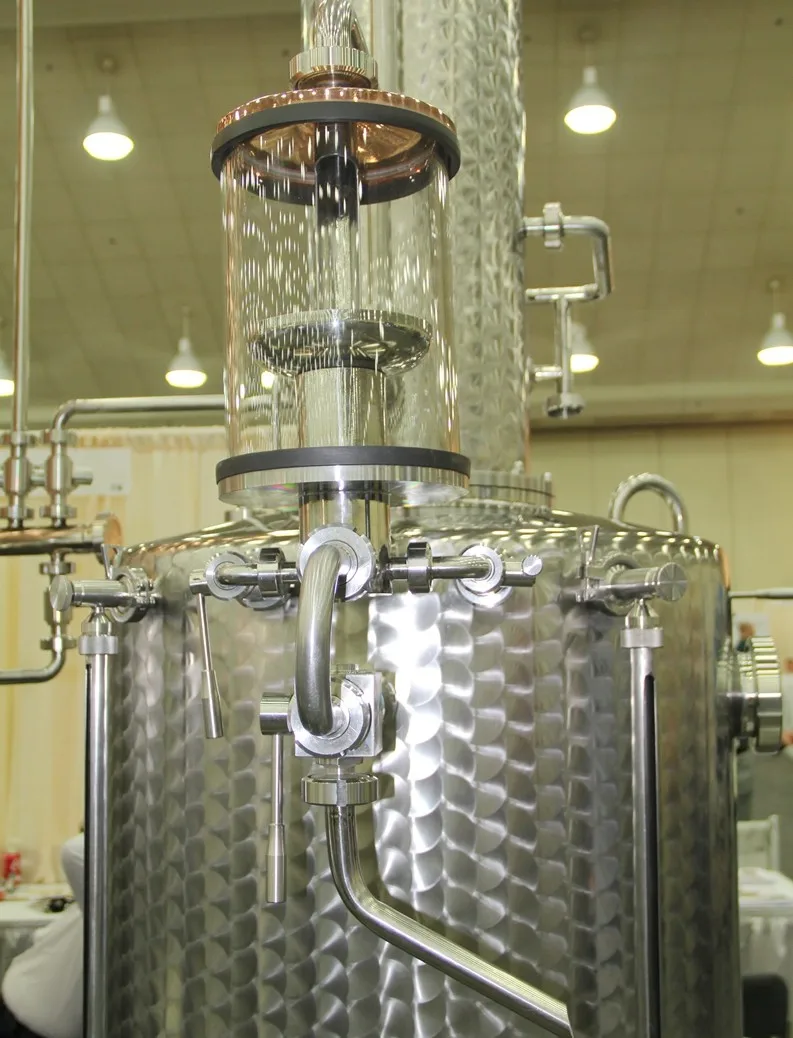

Gin basket

glass column ,inside with red copper filter basket.

Distillation column

 within the column are bubble cap trays, the vapor rises up the tube inder the bubble caps and bubbles out from under the cap and through the standing liquid on each tray. The standing liquid overflows at a certain depth to the next tray beblow

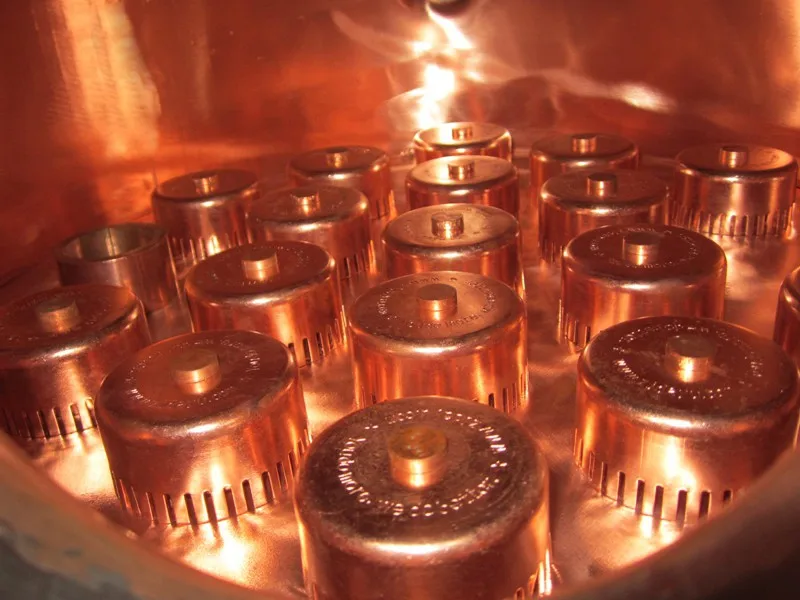

Bubble cap in distillation column

The trays of distillation column we have improve it like photo,if the trays be full welded on column,there will have welding scar around of column,it`s not good looking.All bubble caps and screw are made of T2 grade red copper,the screw design is by our company,no dead corner,it can 100% meet sanitary stand.

Dephlegmator

a reflux condenser at top of distillaction column that sends distillate back toward the boiler,Tube type heat exchanger;

Condenser

Tube type heat exchanger;
hot vapor are cooled and condensed into liquid.

Spirit safety/Parrot outlet

which spirit come out

Suppot base/tank

Which be put at bottom of column as CIP tank
and at bottom of condenser as spirit storage tank.
inside of spirit storage tank, there also can make two small tank to storage head and tail,total 3 storage tank for head,heart and tail.

Other products

DYE-Home distiller
For new starter,you can make moonshine at home

DYE-Pot still
Pot stills can be used to "strip" the wash, prior to a reflux distillation.

DYE-I Still
4 plate column still,which be used for making whisky,brandy,rum etc

DYE-II Still
column still with gin basket,which be used for making whisky, brandy,gin,rum etc

DYE-III Still
column still with gin basket,which be used for making whisky, brandy,gin,rum, vodka etc

DYE-IV Still
column still with gin basket,which be used for making whisky, brandy,gin,rum etc.

We can also supply mash/lauter tun, fermenter and spirit storange tank etc.

Mash lauter tun

with false bottom.It be used to convert barley grain starches to sugar.

Fermenter

Fermentation of the wash

Spirit storage tank

Collection of spirits

Packing and delivery
Quality Control

Thickness test

surface finish test

Material test

ISO

CE

TUV

Our Service

Our customer

Pre-Sales Service

1. Free of making offers, craft and technical guidance.
2. We can provide company's qualification certification and the drawings.
3. We can also make customized products according to customer's needs.

After-Sales Service

1. We provide long-term after-sale service.
2. Owing to the quotation of our equipment is FOB price which excluded charges of door-to-door service. Thus, if necessary, we can appoint our technician to debug the machine with air ticket, visa, accommodation and labor cost provided by your party. Or you can send your technician to our company to learn techniques.
3. Meanwhile, you can call or e-mail to consult any relevant questions since we have a special line of after-sale service. Or you can communicate online and solve the problems.

FRQ

Are you a factory?

Yes, we are factory in wenzhou,China.

Delivery time

Normally, the delivery time is 60days after receive your deposit.

Quality

Quality is the soil of an enterprise. We can offer you competitive advantage products.With us,your money in safe and your business in safe.

How can customer visiting our factory?

A We are in Wenzhou city,Zhejiang Pr.China.which is very near to Shanghai.From Shanghai,China to our city, it will take 1 hour by air, and 4 hours by fast train.The name of airport is Wenzhou Longwan International Airport.The name of fast train station is Wenzhou Nan train station.And our factory is very close to airport only 15 minutes by car. and 1 hour by car from fast train station.

Do you supply installation equipment in oversea?

Yes, if need, we can also send our installation engineer to your factory to help you do installation and testing,and you need to provides round-trip ticket and accommodation for our engineer,the extra salary of one installation engineer is USD100.00/day.

How can customer know the processes of order?

We will take photo or video during manufacturing every two weeks to make customer clear about the order.when goods is finished,we will take more detailed photos or video for inspect.you can also come to our factory to inspect by yourself.
