centrifugal molecular distillation stills boiler liquor distiller

FOB Reference Price:Get Latest Price
$3,500.00 - $50,000.00 / Units | 1 Unit/Units 100 gallon still alchol distiler alcohol distillation column (Min. Order)
Lead Time:
Quantity(Units) 1 - 1 >1
Est. Time(days) 45 Negotiable
Report Suspicious Activity
Overview
Quick Details
Processing:
Other
Condition:
New
Place of Origin:
Zhejiang, China
Brand Name:
DYE, DYE Model Number: DY-106
Model Number:
DY-106
Voltage:
380V, 380V/3PH/50HZ or according Power(W): 380V/3PH/50HZ or according
Power(W):
380V/3PH/50HZ or according
Weight:
200KG-2000KG, 200KG-2000KG
Dimension(L*W*H):
according to the volume, according to the vilume
Processing Types:
Alcohol
Certification:
CE Certificate
Warranty:
3 Years, lifetime warrenty
name:
centrifugal molecular distillation stills boiler liquor distiller
keyword:
alcohol whiskey production machine
alcohol Certification:
CE, PED, ISO9001
Other Condition:
New
Durable years:
more than 10 years
After-sales Service Provided:
Engineers available to service machinery overseas
Product Certification Verified
CE Certified.
Valid from 2017-02-24 until 2022-02-23
Supply Ability
Supply Ability:
10 Set/Sets per Month alcohol whisky production machine
Packaging & Delivery
Packaging Details
Packaging Details: wooden case or container
Delivery Detail: within 45 days after receiving the deposit payment(centrifugal molecular distillation stills boiler liquor distiller)
Port
NingBo or ShangHai
Lead Time :
Quantity(Units) 1 - 1 >1
Est. Time(days) 45 To be negotiated
Product Description

centrifugal molecular distillation stills boiler liquor distiller

General introduction:

    We, DYE company, which is the best manufacturer located in China for all kinds of spirit distillery equipment and beer brewing brewery. We had to maki that for more than 15 years already, and all of our model will be had 13 months free warranty and payment lifetime warranty.


We can offer the item from malt mill to spirit bottling, from model design to plant setup, from raw material to the spirit.


Our model had been export more than 50 countries. We had more than 10 distributors in different countries or area.

We also had several cooperated master distiller both in America and Europe.

alcohol whisky production machine

Model
Structure
Useage
DYE-Home distiller
50~200L still pot+4~10 plate red copper/
stainless 304/glass distillation column+dephlegmator+condenser+
parrot outlet+control box
Economy for lower budget.Application to small sized plant.Alcohol content 80%±10%,

such as whiskey,brandy,rum and vodka.
DYE-I
still pot+goose neck+4plate distillation
column+dephlegmater+condenser+parrot
outlet
Suitable for low alcohol concentration to get high quality taste spirit.Alcohol content 80%±10%,such as whiskey,brandy,rum etc.
DYE-II
still pot+goose neck+gin basket+4plate
distillation column+dephlegmater+
condenser+parrot outlet
Suitable for low alcohol concentration and available for fruitful flavor with spices to get high quality taste spirit.Alcohol content 80%±10%,such as whiskey,brandy,rum +spices.
DYE-III
still pot+goose neck+gin basket+4plate
distillation column+16~20plates distillation
column+dephlegmater+condenser+parrot
outlet
Alcohol content 80%±15%,such as
whiskey,brandy,rum,gin and vodka.
DYE-IV
still pot+goose neck+4plate distillation
column+16~20plates distillation column +dephlegmater+condenser+parrot
outlet
Suitable for both low and high alcohol
concentration to get high quality taste spirit.Alcohol content .
DYE-H
still pot+4plate distillation column+
dephlegmater+condenser+parrot
outlet
Economy for lower budget.Application to small
sized plant.Alcohol content 80%±10%,such as
whiskey,brandy,rum and vodka.
POT Still
still pot+goose neck+condenser+parrot
outlet
General taste and low alcohol concentration
(usually,using together with column still.Crude distilled spirit≤65%.

Main Features:

1.Semi continuous design for maximum efficiency Standard Four plate glass rectification column

2.Efficient CIP ring for 360 degree cleaning

3.Standard Whiskey Helmet ( other styles avable upon request)

4.Copper and 304 Stainless Construction ( No solder )

5.Three position valves for stripping and rectification runs

6.Stainless tube and Shell liquid management condenser with glass shell for full viewing of condensing water.

7.304 Stainless steel process piping.

Detailed Images

Machine Parts

Name:Support

Brand: DYE

Original: China

All support are made of stainless steel 304 or red copper,we can also do the shape according to your requirement

Main Features

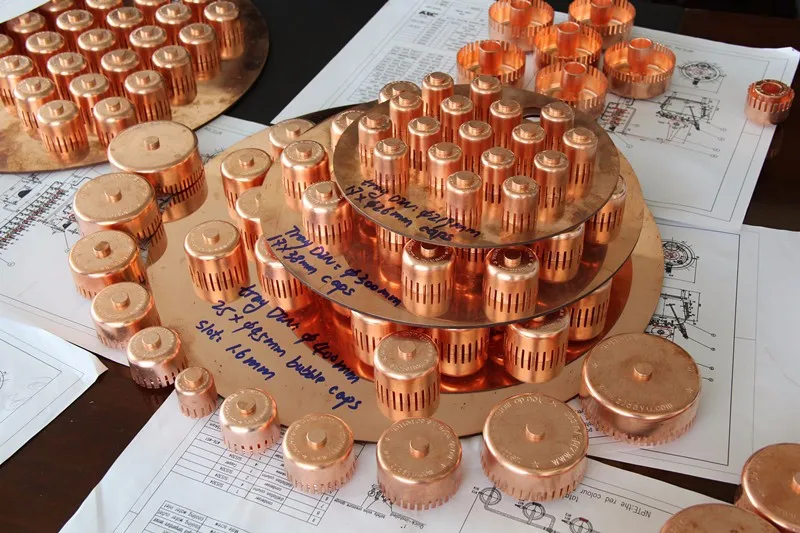

Name: Bubble caps and trays
Brand:DYE
Original:
China

The trays of distillation column we have improve it like photo,if the trays be full welded on column,there will have welding scar around of column,it`s not good looking.All bubble caps and screw are made of T2 grade red copper,the screw design is by our company,no dead corner,it can 100% meet sanitary stand.

Machine Parts

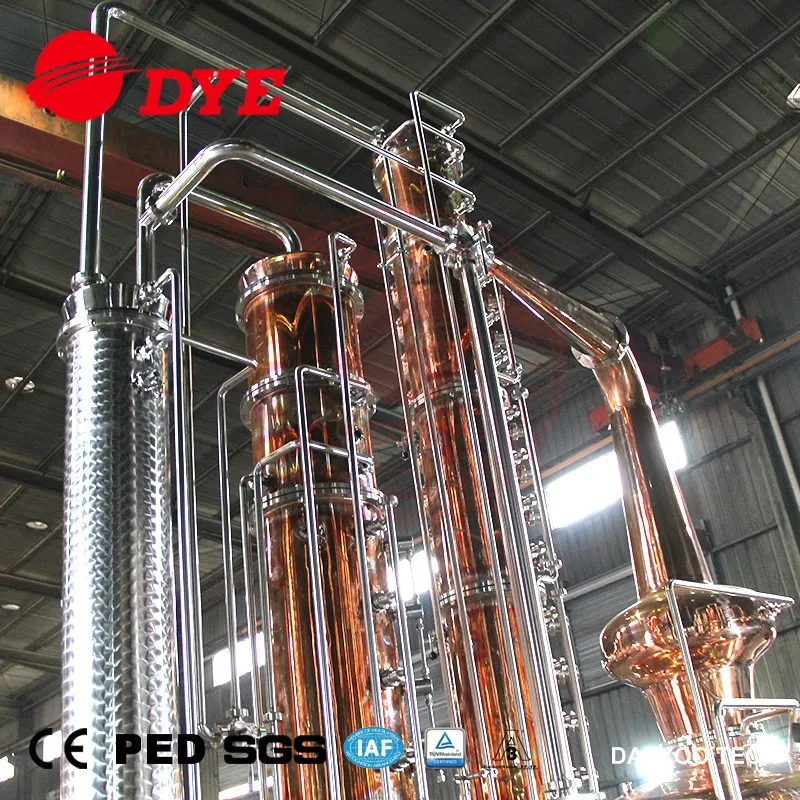

Name: Distillation column
Brand: DYE
Original:
China

5 & 8-4 plant/16 plate Distillation column
It consist of red copper column,bubble cap,down comers,bubble plate,red copper screw.We can tailor the height and plate number for your specific application.the max.height of column can reach 2000 mm;up to 10 plates with a pair of flange;all bubble plates integrated within a tightly embedded inner shell;all features so the surface appearance looks smooth and attractive,yet simple and generous.
FEATURES:For low wine:4-6 plates;For High wine:6-20 plates

Main Features

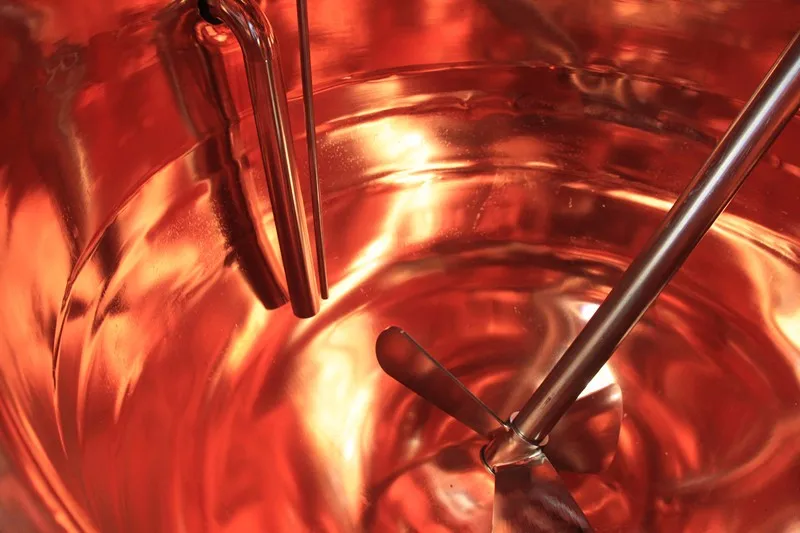

Name: Agitator
Brand: Siemens,ABB,Nanyang or other
Original:
Germany ,Japan,China

On top of still pot,with agitator.
Material:stainless steel 304,union connection,it`s easy to installtion.
Voltage:280V/220V/240V/380V/415V/460V/etc,we can supply voltage according to customer request,Ex-proof motor with CE/UL/CSA certificate
Certificate

ISO.

CE

PED

Packing and delivery

Shipment By LCL

if the goods not fit in one container, we will pack by plastic wrap and plywood cases,then arrange to shipment by LCL. If export to european countries,the wooden box will be fumigated.

Shipemnt by FCL(20/40/45 Feet container)
